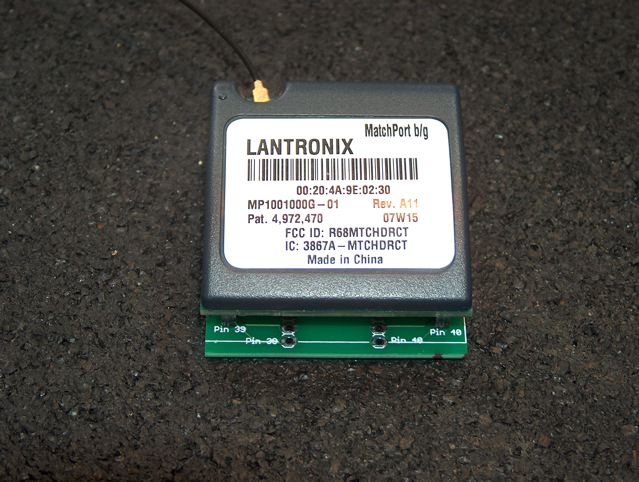

MatchPort is
Lantronix's Embedded Wireless and Ethernet Device Server. It
has a special
footprint that makes it difficult to use a standard 0.1 inch (2.54mm)
protoboard or breadboard. This adapter exposes all MatchPort
signals
to a standard 0.1 inch (2.54mm) spaced Dual In Line (DIL) header.
Features:
- MatchPort footprint using 2
2mm female sockets.
- 0.1 inch
(2.54mm) spaced header for breadboard or protoboard connectivity
Device
Compatibility:
- Lantronix MatchPort b/g
- Lantronix
MatchPort b/g Pro
- Lantronix MatchPort AR
MatchPort
device not included.
What is included
| Lantronix MatchPort Adapter |
| Parts | Qty | Device |
PCB
| 1
| Lantronix MatchPort Adapter PCB
|
| J1,
J2 | 2 | 20-pin 2mm female header |
| J3,
J4 | 2 | 20-pin 2.54mm male pin
header |
Requirements
Lantronix
MatchPort, Soldering iron, solder and soldering skills
