This is the header pack for the MEGAshield PCB.

The kit includes:

• 1 x tactile switch
• 1 x 330ohm resistor
• 1 x blue LED
• 1 x 0.1uF capacitor
• 1 x 2x3-pin female header
• 1 x 6-pin female header
• 5 x 8-pin female header
• 1 x 2x18-pin female header
• 1 x 6-pin male header
• 2 x jumper or shunt

With this kit you can make your MEGAshield PCB, stackable on top of the Arduino MEGA board.

This is the only MEGA shield kit on the market that features a 2x18-pin female header with long legs, to expose the complete right side header on the Arduino MEGA board.

Picture of the MEGAshield kit assembled, mounted on top of an Arduino MEGA board (Arduino MEGA and MEGAshield PCB not included)

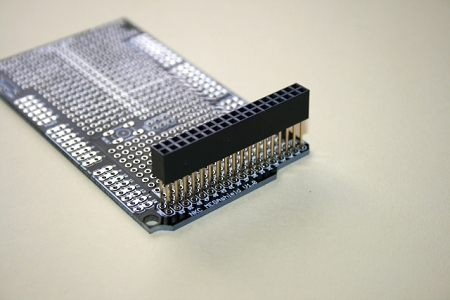

Mounting example with the new 2x18 pin header
